How To Draw Oblique Sketches

Sketch the back face which is offset with respect to the front face. Pause every now and again to practise the technique proper. If you draw it twice the real size show the scale as 21.

romantic couple drawing sketch rottweiler sketch drawing procreate draw sketch paint and design on your ipad penguin sketch drawing pro art 3078 18 piece sketch draw pencil set pendant drawing sketch pencil sketch drawing pictures pencil sketch drawing krishna

Pin On Civil Engineering

Pin On Doodle

Oblique Drawing Exercises Drawing Exercises Exercise And Drawings On Pinterest Isometric Drawing Drawing Exercises Oblique Drawing

Pin On Art

Pin On Spatial Systems Theme

Pin On Drawing And Painting

Such a drawing usually consists of an object in which the front of the object is drawn flat with the height and width of the object drawn the proper lengths.

How to draw oblique sketches. An angle of 30 is also a popular choice. A quick demo on how to draw Oblique sketches. Then use grid paper.

This is often at a. The oblique sketching is used most of the time in technical drawings to represent the technical devices in 3 dimensions. Transfer the distance of object and draw the construction lines.

Get the foundations right and the world is your oyster. This means that if the object shown on the right is 4 deep you would draw it 4 deep. If you can draw a 2-D square or an oblique 3-D cube you can draw a 1-Po.

Oblique Drawing Examples. You can stop and replay the film at any time if there is something you do not understand. Oblique projections are created using oblique grid paper and use 45-degree lines to create a 3D graphical image.

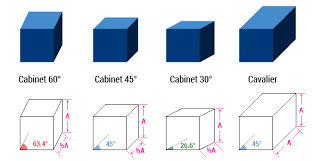

The width of an object is represented by a horizontal line. Oblique drawing is one of the simple and efficient methods used to represent a three-dimensional image of an object which is represented in 2 dimensions. In Cavalier Oblique Drawings all lines including receding lines are made to their true length.

Join the corresponding corners as shown. An oblique drawing is a simple form of three-dimensional 3D drawing that is often created for drafting or engineering. Draw the part to scale.
